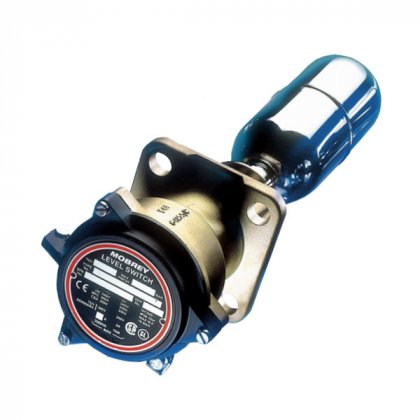

Mobrey magnetic horizontal level switch
Get Best Offer
Sebagai distributor magnetic level switch di surabaya , PT Indotama Niaga Teknik menawarkan produk dari brand mobrey yaitu Mobrey magnetic horizontal level switch , dari brand tersebut ada beberapa type lainnya yaitu Aluminum bronze wetside,S440DA/F84,S250DA/F84,316 stainless steel,S163,S179,S195,S163,S183,S181,S187,S189
Distributor Mobrey magnetic horizontal level switch Surabaya
Mobrey magnetic horizontal level switch
Untuk Alarm Level Cairan dan Kontrol Pompa
- Ideal untuk aplikasi industri seperti kontrol pompa dan tugas alarm tinggi atau rendah pada tangki dan bejana tekan
- Sederhana, tangguh, dan dapat diandalkan. Biaya kepemilikan yang rendah
- Pemasangan langsung (samping atau atas) atau ruang
- Beroperasi di sebagian besar cairan
- Berbagai mekanisme sakelar untuk sakelar listrik atau pneumatik
- Persetujuan ATEX dan kelautan
Prinsip pengukuran
Sakelar pelampung horizontal magnetik Mobrey ("sakelar apung") ideal untuk alarm level cairan tinggi dan rendah, dan tugas kontrol pompa. Saklar pelampung dirancang untuk membuka atau menutup sirkuit ("saklar") saat ketinggian cairan yang berubah di dalam bejana melewati ketinggian pelampung (Titik Sakelar). Ketika level cairan proses berada di bawah Switch Point, kontak BB dibuat (bersama-sama) dan kontak AA terbuka. Ketika level cairan proses berada di atas Switch Point, kontak AA dibuat (bersama-sama) dan kontak BB terbuka.
| Model | Product description | ||
| S | Horizontal Float Switch | ||
| Flange (head)(1) | Max. TProcess(2) | ||
| 01(3) | General purpose, aluminum bronze wetside, Mobrey ‘A’ flange, 261 psi (18 bar) | 410 °F (210 °C) | ★ |
| Switch mechanism(4) | |||
| D | Electrical: 2 independent Single Pole Single Throw (SPST) contact sets | ★ | |
| P | As type D but with gold plated contacts | ★ | |
| D6 | Electrical: 2 independent circuits of Double Pole Double Throw (DPDT) contact sets | ||
| P6 | As type D6 but with gold plated contacts | ||
| AP | Pneumatic: air pilot valve on/off for switching air circuits | ||
| AM(5) | Pneumatic: air pilot valve for continuous modulating of air controlled circuits | ||
| Enclosure | Switch types | ||
| A | Aluminum alloy | AP or AM | ★ |
| B | Aluminum bronze | D, P, D6, or P6 | ★ |
| Float (all ratings at Troom)(6) | Switch types | ||
| F84 | General purpose high/low alarm, 316 SST, min. SG 0.65, 500 psi (34.5 bar) | All | ★ |
| F68/1(7) | Horizontal variable differential for pump control/alarm, 316 SST, min. SG 0.72, 500 psi (34.5 bar) | All except AM | ★ |
| F68/4(7) | Horizontal variable differential for pump control/alarm, 316 SST, min. SG 0.85, 500 psi (34.5 bar) | All except AM | ★ |
| F21/1(7) | Vertical pump control or alarm, 316 SST, rod length 1524 mm, 435 psi (30 bar) | All except AM | ★ |
| F21/2(7) | Vertical pump control or alarm, 316 SST, rod length 3048 mm, 435 psi (30 bar) | All except AM | ★ |
| F21/3(7) | Vertical pump control or alarm, 316 SST, rod length 4570 mm, 435 psi (30 bar) | All except AM | ★ |
| F104/1(7) | Straight arm, horizontal, 316 SST, rod length 750 mm, 500 psi (34.5 bar) | All | ★ |
| F104/2(7) | Cranked arm, horizontal, 316 SST, dimensions to be specified, 500 psi (34.5 bar) | All | ★ |
| F104/3(7) | Cranked arm, vertical, 316 SST, dimensions to be specified, 500 psi (34.5 bar) | All | ★ |
| F93(8)(9) | Shrouded for dirty liquids, 316 SST, min. SG 0.75, atmospheric | All | ★ |
| F185 | General purpose high/low alarm, Alloy 400, min. SG 0.65, 500 psi (34.5 bar) | All | ★ |
| F264 | Horizontal limited differential, Alloy 400, min. SG 0.85, 464 psi (32 bar) | All except AM | |
| Typical model number:S01DB/F84 | |||
| Model | Product description | ||
| S | Horizontal Float Switch | ||
| Flange (head)(1) | Max. TProcess(2) | ||
| 36(3)(4) | General purpose, stainless steel wetside, Mobrey ‘A’ flange, 490 psi (33.8 bar) | 752 °F (400 °C) | ★ |
| 190(3)(4)(5) | General purpose, stainless steel wetside, Mobrey ‘A’ flange, 490 psi (33.8 bar) | 356 °F (180 °C) | |
| 440 | General purpose, stainless steel wetside, 3 in. ASME B16.5 Class 150 RF flange | 752 °F (400 °C) | |
| 441 | General purpose, stainless steel wetside, 4 in. ASME B16.5 Class 150 RF flange | 752 °F (400 °C) | |
| 424 | General purpose, stainless steel wetside, 3 in. ASME B16.5 Class 300 RF flange | 752 °F (400 °C) | |
| 425 | General purpose, stainless steel wetside, 4 in. ASME B16.5 Class 300 RF flange | 752 °F (400 °C) | |
| 489 | General purpose, stainless steel wetside, 3 in. ASME B16.5 Class 600 RF flange | 752 °F (400 °C) | |
| 490 | General purpose, stainless steel wetside, 3 in. ASME B16.5 Class 900 RF flange | 752 °F (400 °C) | |
| 428 | General purpose, stainless steel wetside, EN 1092-1 DN 65 PN 16 (4 bolt hole) flange | 752 °F (400 °C) | |
| 429 | General purpose, stainless steel wetside, EN 1092-1 DN 80 PN 16 flange | 752 °F (400 °C) | |
| 430 | General purpose, stainless steel wetside, EN 1092-1 DN 100 PN 16 flange | 752 °F (400 °C) | |
| 431 | General purpose, stainless steel wetside, EN 1092-1 DN 125 PN 16 flange | 752 °F (400 °C) | |
| 432 | General purpose, stainless steel wetside, EN 1092-1 DN 150 PN 16 flange | 752 °F (400 °C) | |
| 417 | General purpose, stainless steel wetside, EN 1092-1 DN 65 PN 40 flange | 752 °F (400 °C) | |
| 418 | General purpose, stainless steel wetside, EN 1092-1 DN 80 PN 40 flange | 752 °F (400 °C) | |
| 419 | General purpose, stainless steel wetside, EN 1092-1 DN 100 PN 40 flange | 752 °F (400 °C) | |
| 433 | General purpose, stainless steel wetside, EN 1092-1 DN 125 PN 40 flange | 752 °F (400 °C) | |
| 434 | General purpose, stainless steel wetside, EN 1092-1 DN 150 PN 40 flange | 752 °F (400 °C) | |
| 488 | General purpose, stainless steel wetside, EN 1092-1 DN 80 PN 63 flange | 752 °F (400 °C) | |
| 435 | General purpose, stainless steel wetside, EN 1092-1 DN 100 PN 63 flange | 752 °F (400 °C) | |
| 436 | General purpose, stainless steel wetside, EN 1092-1 DN 125 PN 63 flange | 752 °F (400 °C) | |
| 437 | General purpose, stainless steel wetside, EN 1092-1 DN 150 PN 63 flange | 752 °F (400 °C) | |
| Switch mechanism(6) | Max. TProcess(2) | ||
| D | Electrical: 2 independent Single Pole Single Throw (SPST) contact sets | 752 °F (400 °C) | ★ |
| P | As type D but with gold plated contacts | 752 °F (400 °C) | ★ |
| D6 | Electrical: 2 independent circuits of Double Pole Double Throw (DPDT) contact sets | 752 °F (400 °C) | |
| P6 | As type D6 but with gold plated contacts | 752 °F (400 °C) | |
| H6 | As type D6 but with gold plated contacts and hermetically sealed moving parts | 482 °F (250 °C) | |
| B6 | As type H6 but approved for Zone 2 areas | 482 °F (250 °C) | |
| AP | Pneumatic: air pilot valve on/off for switching air circuits | 752 °F (400 °C) | |
| AM(7) | Pneumatic: air pilot valve for continuous modulating of air controlled circuits | 752 °F (400 °C) | |
| Enclosure | |||
| A | Aluminum alloy | ★ | |
| Float (all ratings at Troom ) (8) | Max. T Process (2) | ||
| F84 | General purpose high/low alarm, 316 SST, min. SG 0.65, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F68/1(9) | Horizontal variable differential for pump control/alarm, 316 SST, min. SG 0.72, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F68/4(9) | Horizontal variable differential for pump control/alarm, 316 SST, min. SG 0.85, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F21/1(9) | Vertical pump control or alarm, 316 SST, rod length 1524 mm, 435 psi (30 bar) | 752 °F (400 °C) | |
| F21/2(9) | Vertical pump control or alarm, 316 SST, rod length 3048 mm, 435 psi (30 bar) | 752 °F (400 °C) | ★ |
| F21/3(9) | Vertical pump control or alarm, 316 SST, rod length 4570 mm, 435 psi (30 bar) | 752 °F (400 °C) | ★ |
| F104/1(9) | Straight arm, horizontal, 316 SST, rod length 750 mm, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F104/2(9) | Cranked arm, horizontal, 316 SST, dimensions to be specified, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F104/3(9) | Cranked arm, vertical, 316 SST, dimensions to be specified, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F93(5)(10) | Shrouded for dirty liquids, 316 SST, min. SG 0.75, atmospheric | 356 °F (180 °C) | ★ |
| F185 | General purpose high/low alarm, Alloy 400, min. SG 0.65, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F96 | General purpose high/low alarm, 316 SST, min. SG 0.60, 1073 psi (74 bar) | 752 °F (400 °C) | |
| F98 | General purpose high/low alarm, 316 SST, min. SG 0.45, 500 psi (34.5 bar) | 752 °F (400 °C) | |
| F106 | General purpose high/low alarm, 316 SST, min. SG 0.51, 1073 psi (74 bar) | 752 °F (400 °C) | |
| F107 | General purpose high/low alarm, 316 SST, min. SG 0.71, 2900 psi (200 bar) | 752 °F (400 °C) | |
| F88 | Interface duties, 316 SST, min. SG 0.80, 1073 psi (74 bar) | 752 °F (400 °C) | |
| F264 | Horizontal limited differential, Alloy 400, min. SG 0.85, 464 psi (32 bar) | 752 °F (400 °C) | |
| Typical model number:S36DA/F84 |
|||
| S | Horizontal Float Switch | ||
| Flange (head)(1) | Max. TProcess(2) | ||
| 250(3)(4) | Flameproof Zone 1, stainless steel wetside, Mobrey ‘G’ flange, 304.5 psi (21 bar) | 752 °F (400 °C) | ★ |
| 275(3)(4) | Flameproof Zone 1, gunmetal wetside, Mobrey ‘G’ flange, 304.5 psi (21 bar) | 392 °F (200 °C) | ★ |
| 256 | Flameproof Zone 1, stainless steel wetside, 3 in. ASME B16.5 Class 150 RF flange | 752 °F (400 °C) | |
| 257 | Flameproof Zone 1, stainless steel wetside, 4 in. ASME B16.5 Class 150 RF flange | 752 °F (400 °C) | |
| 278 | Flameproof Zone 1, stainless steel wetside, 6 in. ASME B16.5 Class 150 RF flange | 752 °F (400 °C) | |
| 251 | Flameproof Zone 1, stainless steel wetside, 3 in. ASME B16.5 Class 300 RF flange | 752 °F (400 °C) | |
| 254 | Flameproof Zone 1, stainless steel wetside, 4 in. ASME B16.5 Class 300 RF flange | 752 °F (400 °C) | |
| 260 | Flameproof Zone 1, stainless steel wetside, 3 in. ASME B16.5 Class 600 RF flange | 752 °F (400 °C) | |
| 261 | Flameproof Zone 1, stainless steel wetside, 3 in. ASME B16.5 Class 900 RF flange | 752 °F (400 °C) | |
| 253 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 80 PN 40 flange | 752 °F (400 °C) | |
| 255 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 100 PN 40 flange | 752 °F (400 °C) | |
| 269 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 125 PN 40 flange | 752 °F (400 °C) | |
| 272 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 80 PN 63 flange | 752 °F (400 °C) | |
| 268 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 100 PN 63 flange | 752 °F (400 °C) | |
| 270 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 125 PN 63 flange | 752 °F (400 °C) | |
| 271 | Flameproof Zone 1, stainless steel wetside, EN 1092-1 DN 150 PN 63 flange | 752 °F (400 °C) | |
| Switch mechanism(5) | Max. TProcess(2) | ||
| D | Electrical: 2 independent Single Pole Single Throw (SPST) contact sets | 752 °F (400 °C) | ★ |
| P | As type D but with gold plated contacts | 752 °F (400 °C) | ★ |
| D6 | Electrical: 2 independent circuits of Double Pole Double Throw (DPDT) contact sets | 752 °F (400 °C) | |
| P6 | As type D6 but with gold plated contacts | 752 °F (400 °C) | |
| H6 | As type D6 but with gold plated contacts and hermetically sealed moving parts | 482 °F (250 °C) | |
| Enclosure | Max. TProcess(2) | ||
| A | Aluminum alloy | 752 °F (400 °C) | ★ |
| G | Gunmetal | 662 °F (350 °C) | |
| AX(6) | Aluminum alloy, low ambient temperatures –4 to –76 °F (–20 to –60 °C) | 752 °F (400 °C) | |
| GX(6) | Gunmetal, low ambient temperatures –4 to –76 °F (–20 to –60 °C) | 662 °F (350 °C) | |
| Float (all ratings at Troom)(7) | Max. TProcess(2) | ||
| F84 | General purpose high/low alarm, 316 SST, min. SG 0.65, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F185 | General purpose high/low alarm, Alloy 400, min. SG 0.65, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F68/1(8) | Horizontal variable differential for pump control/alarm, 316 SST, min. SG 0.72, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F68/4(8) | Horizontal variable differential for pump control/alarm, 316 SST, min. SG 0.85, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F21/1(8) | Vertical pump control or alarm, 316 SST, rod length 1524 mm, 435 psi (30 bar) | 752 °F (400 °C) | ★ |
| F21/2(8) | Vertical pump control or alarm, 316 SST, rod length 3048 mm, 435 psi (30 bar) | 752 °F (400 °C) | ★ |
| F21/3(8) | Vertical pump control or alarm, 316 SST, rod length 4570 mm, 435 psi (30 bar) | 752 °F (400 °C) | ★ |
| F104/1(8) | Straight arm, horizontal, 316 SST, rod length 750 mm, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F104/2(8) | Cranked arm, horizontal, 316 SST, dimensions to be specified, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F104/3(8) | Cranked arm, vertical, 316 SST, dimensions to be specified, 500 psi (34.5 bar) | 752 °F (400 °C) | ★ |
| F96 | General purpose high/low alarm, 316 SST, min. SG 0.60, 1073 psi (74 bar) | 752 °F (400 °C) | |
| F98 | General purpose high/low alarm, 316 SST, min. SG 0.45, 500 psi (34.5 bar) | 752 °F (400 °C) | |
Type
S440DA/F84 S250DA/F84,316 S163 S179 S195 S163 S183 S181 S187 S189
Fitur
Magnetically coupled No glands or linkages that could cause leaks No springs means reduced maintenance Snap action switching No contact hover or bounce for clean make or break Hermetically sealed switch mechanism is available to eliminate freezing and corrosion of contacts and all moving parts
